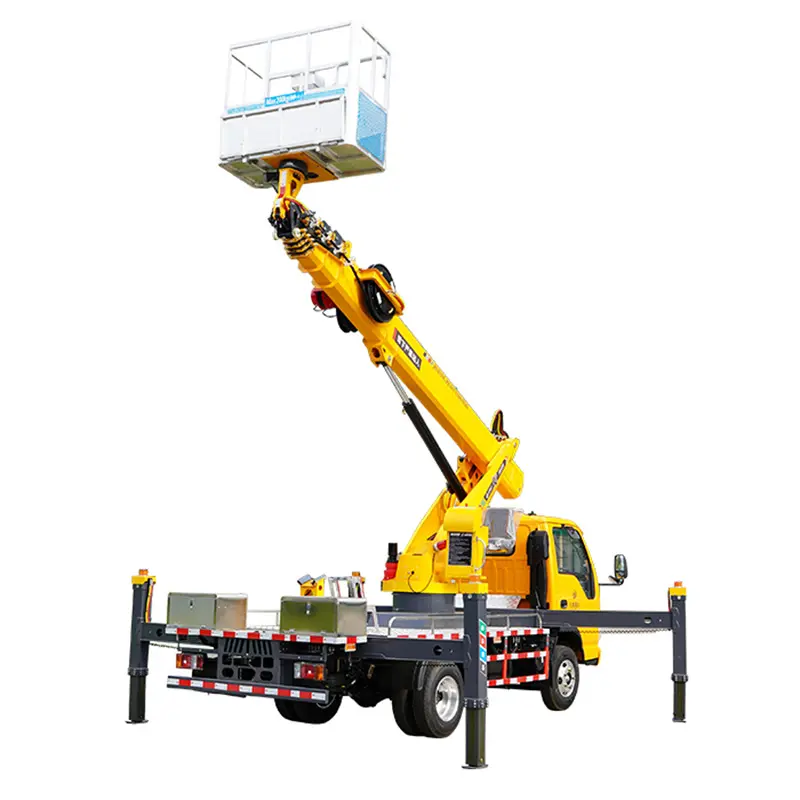

27m Aerial Work Platform Truck

描述

Product Description

1.The automatic interlocking device for getting on and off the vehicle is used to interlock the getting on and off the vehicle to prevent danger caused by misoperation.

  1. Automatic emergency pump: When the main pump fails, the emergency system can send workers back to the ground
  2. Working platform emergency stop device is used for emergency stop operations and restricts boom operations
  3. Automatically limit the working range. When the working range reaches the specified value, the dangerous direction will be automatically limited.
  4. When the outriggers are not supporting the ground (soft legs), the lifting boom will restrict work in dangerous directions.
  5. Nighttime safety warning devices include engineering strobe lights and LED lighting on the vehicle.
  6. Square hydraulic outriggers have stronger bearing capacity and more stable ground support than traditional hydraulic outriggers.
  7. The eighteen-sided working arm has higher stability and can withstand greater loads.
Chassis JiangLing Shunda / JAC Kangling / Isuzu
Drive mode rear drive
No. of front tires 2
No. of rear tires 4
Braking method Oil brake
Cab number single row 2 people
Temperature control air-conditioning
Engie Isuzu
Power 122P
Emission National 6
Total size 5595*2000*2980mm
Weight 4495kg
Bucket load 200kg
Max. working height 27m
Working range at max. working height 3m
Max. working range 12m
Working height at max. working range 17m
Leg span (lateral) 4140mm
Leg span (longitudinal) 4300mm
Force extraction system Mechianiclly operation
Bucket size 1400*710*1200mm
Boom type 5 section hexagonal working boom
Rotation 360°
Legs Front V rear H type, individually adjustable
No. of variable amplitude cylinders 1
Boom telescopic structure Cylinder and wire rope type
Wheel base 3360mm
Max. driving speed 110km/h
Approach angle 27°
Departure angle 11°
Operation way remote control/manual operation
Emergency operation automatic emergency operation
Control system CAN bus control system
Leveling system automactic leveling
Control voltage 12V
